OVERVIEW


Pro 8028XC

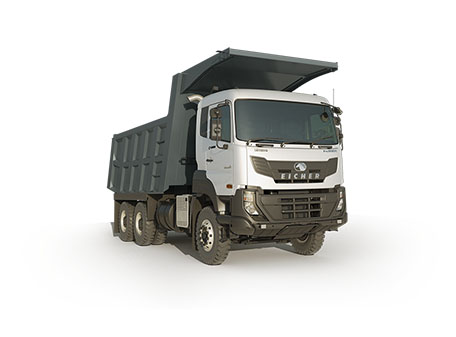

PRO 8028XC The new Eicher Pro 8028XC is a heavy duty 28T GVW Tipper. designed to match the extreme demands in heavy construction applications.

Built with the proven VEDX8 engine - delivering 300HP - and robust aggregates

  • Pro 8028XC is one of the most powerful Tipper in its class. Experience the Extreme.

Engine Power

300HP @ 2200

Torque

1200Nm @ 1200-1600 RPM

Fuel Type

Diesel

Download Brochure

Specifications Pro 8028XC
GVW (kg) 28000
Engine Model VEDX8, BS-VI
Max Power 300HP @ 2200
Max Torque 1200Nm @ 1200-1600 RPM
Clutch Type & Diameter 430mm, Pull Type, Single Dry Plate
Gearbox ET140S9 - 1C + 8F + 1R
Front Axle Heavy-duty forged I-beam, Reverse Elliot type axle with stabilizer bar
Rear Axle Heavy Duty Single Reduction Tandem Axle
Rear Axle Ratio 5.29
Differential lock Inter-axle
Chassis dimension (mm) 300 x 90 x 8 with 5mm Full length inner liner
Front suspension Parabolic
Rear suspension Bogie
Service brake S-Cam Dual line with ABS
Parking brake Pnuematically operated hand control valve
Wheel Rims 7.5 x 20
Tyres 11 x 20 (Nylon, Mining Lug)
Steering Type Tilt and Telescopic Power steering
Cabin AC Sleeper Cabin
Fuel Tank (L) 315
DEF Tank (L) 50
Electricals & Battery 24V; 120AH
Wheel base(mm) 4585
Minimum Ground Clearance (mm) 255
Turning Circle Diameter (m) 16.3
Gradeability (%) 68 - Crawler Gear
Body Variants 14 Cum (Rock)
16 Cum (Box)
20 Cum (Box)
Standard Features Eicher Live, Fuel Coaching, Cruise Control, M Booster+
